Preview: SVSC Preview: SVSC
SVSC
SVSC

For price information, please .

Cam
Width
W1

Working
Angle
u (°)

Working Force
F (kN)*

View details
  • Article number SVSC50-217156
  • Product name: SVSC50-00
Description Properties PDF & links Technical information
Description
CAM-Unit according to VDI/BAK reglementations for hole punching and bending operations Working... more
Close menu
Product information "SVSC"

CAM-Unit according to VDI/BAK reglementations for hole punching and bending operations
Working force designed for 1 million strokes

For more information, please read the   PDF

CAM-Type: Die-mounted CAM

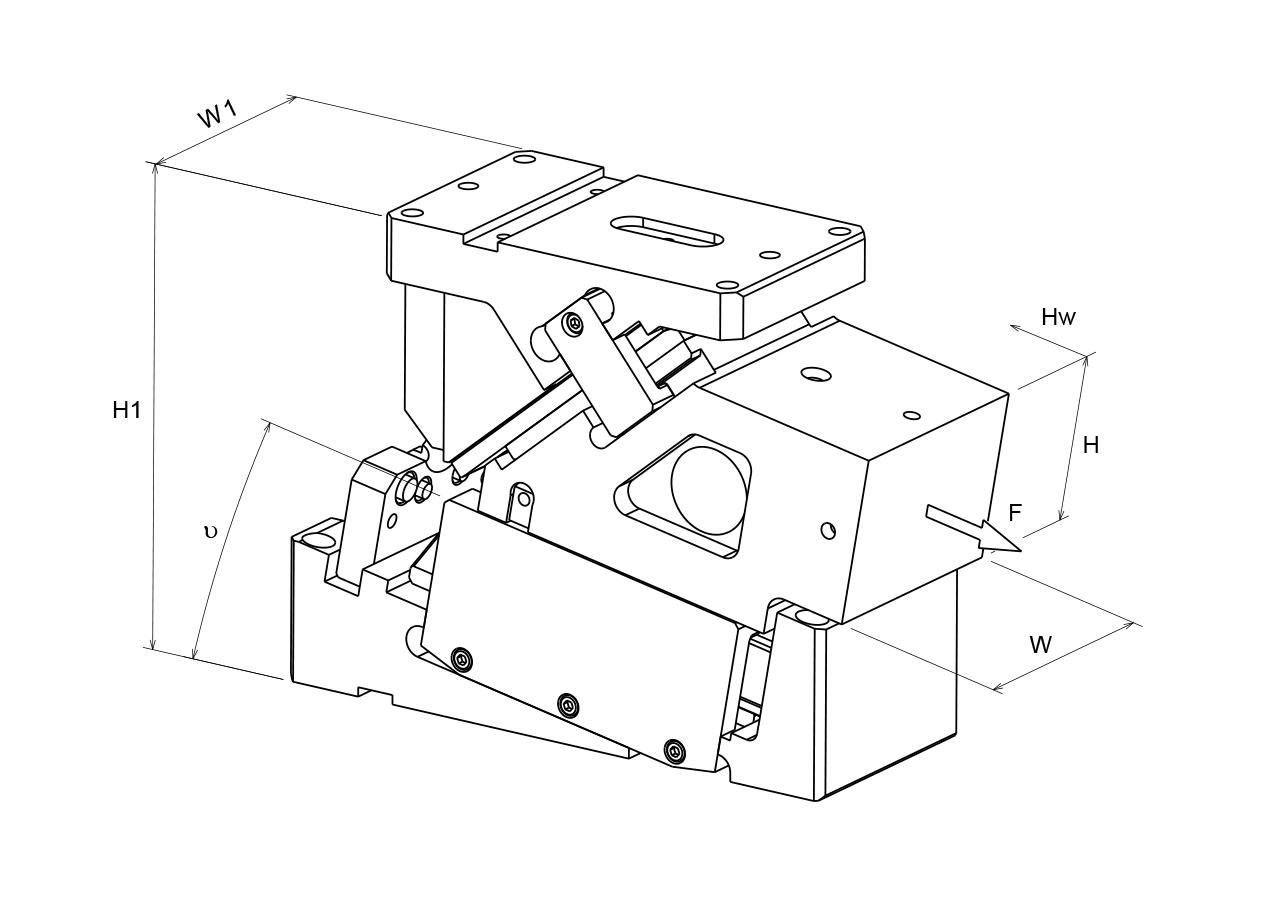

Article name Cam
Width
W1		 Shutheight
H1		 Work Area
Width
W		 Work Area
Height
H		 Stroke
Hw		 Working
Angle
u (°)		 Returnforce
Fr (kN)		 Working Force
F (kN)*		 Weight
(kg)		 CAD Basket
SVSC50-00 50 250 50 75 55 0 - 29,4 7,9
SVSC50-05 50 250 50 75 55 5 - 29,4 7,9
SVSC50-10 50 250 50 75 55 10 - 29,4 7,9
SVSC50-15 50 250 50 75 55 15 - 29,4 7,9
SVSC50-20 50 250 50 75 55 20 - 29,4 7,9
SVSC85-00 85 290 85 85 70 0 - 58,8 18,8
SVSC85-05 85 290 85 85 70 5 - 58,8 18,8
SVSC85-10 85 290 85 85 70 10 - 58,8 18,8
SVSC85-15 85 290 85 85 70 15 - 58,8 18,8
SVSC85-20 85 290 85 85 70 20 - 58,8 18,8
SVSC110-00 110 310 110 110 70 0 - 117,7 28,7
SVSC110-05 110 310 110 110 70 5 - 117,7 28,7
SVSC110-10 110 310 110 110 70 10 - 117,7 28,7
SVSC110-15 110 310 110 110 70 15 - 117,7 28,7
SVSC110-20 110 310 110 110 70 20 - 117,7 28,7
SVSC150-00 150 310 150 110 70 0 - 166,7 40,8
SVSC150-05 150 310 150 110 70 5 - 166,7 40,8
SVSC150-10 150 310 150 110 70 10 - 166,7 40,8
SVSC150-15 150 310 150 110 70 15 - 166,7 40,8
SVSC150-20 150 310 150 110 70 20 - 166,7 40,8
SVSC220-00 220 310 220 110 70 0 - 245,2 60,3
SVSC220-05 220 310 220 110 70 5 - 245,2 60,3
SVSC220-10 220 310 220 110 70 10 - 245,2 60,3
SVSC220-15 220 310 220 110 70 15 - 245,2 60,3
SVSC220-20 220 310 220 110 70 20 - 245,2 60,3
SVSC330-00 330 380 330 180 80 0 - 343,2 117
SVSC330-05 330 380 330 180 80 5 - 343,2 117
SVSC330-10 330 380 330 180 80 10 - 343,2 117
SVSC330-15 330 380 330 180 80 15 - 343,2 117
SVSC330-20 330 380 330 180 80 20 - 343,2 117
SVSC400-00 400 400 400 180 80 0 - 431,5 151
SVSC400-05 400 400 400 180 80 5 - 431,5 151
SVSC400-10 400 400 400 180 80 10 - 431,5 151
SVSC400-15 400 400 400 180 80 15 - 431,5 151
SVSC400-20 400 400 400 180 80 20 - 431,5 151
Article name Cam
Width
W1		 Shutheight
H1		 Work Area
Width
W		 Work Area
Height
H		 Stroke
Hw		 Working
Angle
u (°)		 Returnforce
Fr (kN)		 Working Force
F (kN)*		 Weight
(kg)		 CAD Basket
